Handrail Wall Protection System

WG 152

Back
Technical Specifications

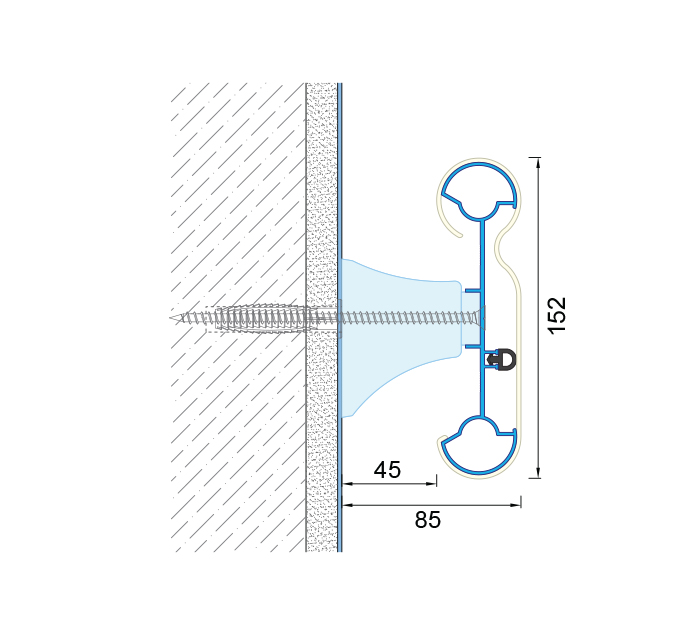

WG 152 Handrail Wall Protection System is decorative wall protection band with  152 mm width and 85 mm depth. A continuouns aluminum retainer is fastened to the wall 60-75 cm space by using mounting brackets. Vinyl coated wall protection system is resistand to scratching and absorbs the impacts through lower rubber insterts and offers moder solutions by decorative right and left returns. Profile lenght is 4 meters and produced in 32 diffrent colors. Thanks to a spesific antibacterial formulation which does not contain any heavy metal ingredient, it is ideal for use in health like hospitals, nursing houses and clinics.
Accesories
WG 005 Mounting Bracket
WG 005 Mounting Bracket
WG 026 End Cap
WG 026 End Cap
WG 027 End Cap
WG 027 End Cap
WG 028 Outside Corner
WG 028 Outside Corner
WG 029 Inside Corner
WG 029 Inside Corner
EXAMPLE APPLICATIONS
