SJS 140

Back
Technical Specifications

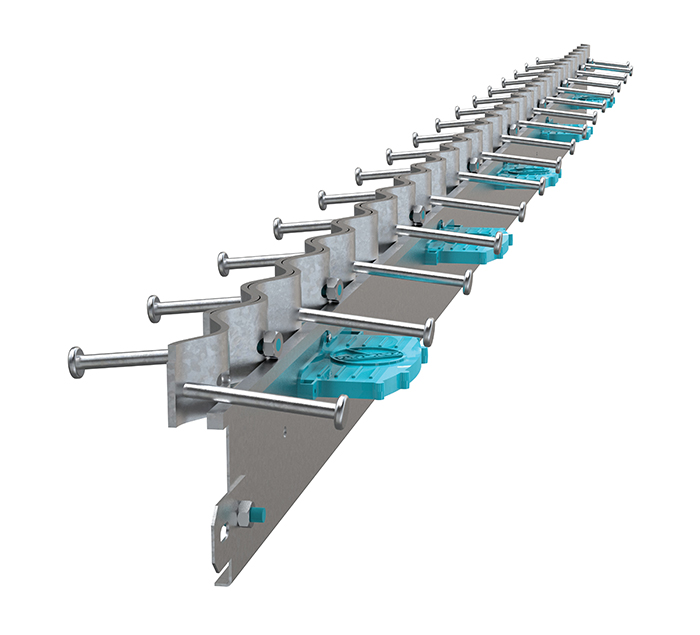

Arfen Sinusoidal Slab Joint provides a superstructure design that provides a quiet working environment during the passage of heavy vehicles such as forklifts and prevents damage to concrete joint edges. This system provides these advantages with its sinus wave shaped structure while minimizing vertical displacements between slabs through load bearing plates. It also provides a more balanced load distribution by transferring wheel loads between the slabs. These specifications both increase work safety and enhance the durability of slab and flooring materials.

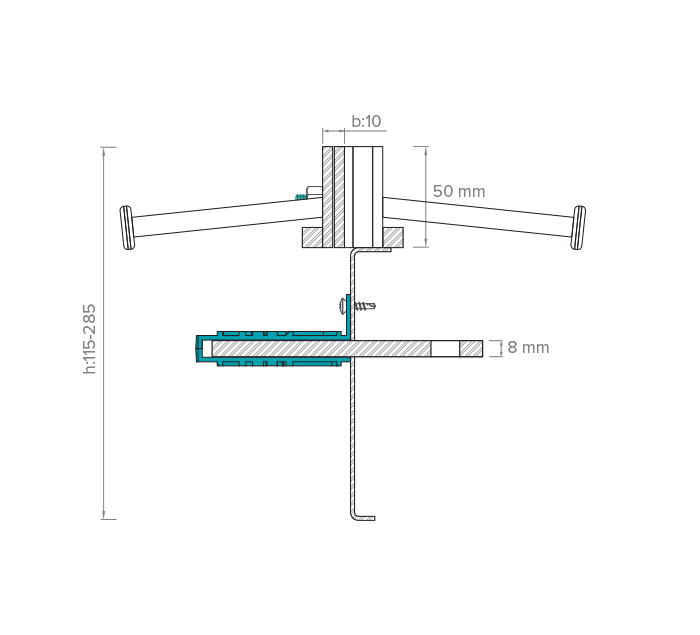

Height: 140 mm
Length: 2705 mm
Recommended Depth:
145-165 mm
EXAMPLE APPLICATIONS
