AR 309-150

Technical Specifications

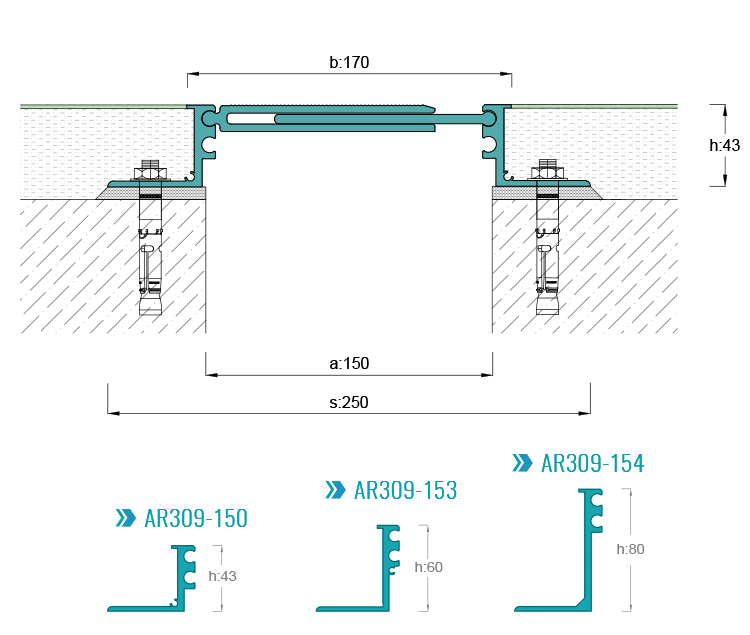

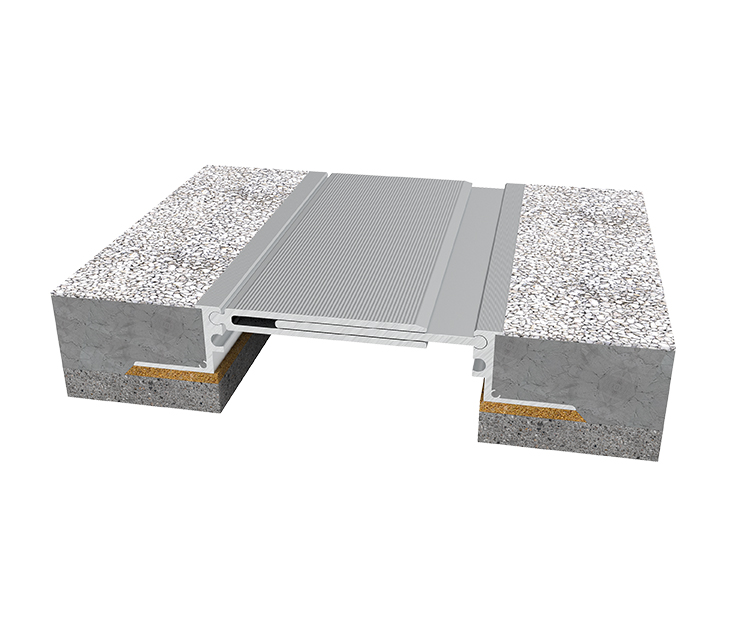

Flush Mounted Expansion Joint Floor Profile suitable for 15 cm gap. Assembled Delivery

Width:	150 mm
Depth-Load Capacity:	43-60-80 mm \| Resistance to pedestrian load
Movement Capacity:	+/- 25 mm
Profile Length:	3 mt

EXAMPLE APPLICATIONS
