Wall and Ceiling Profiles for Over Finishing

AR 291-150

Technical Specifications

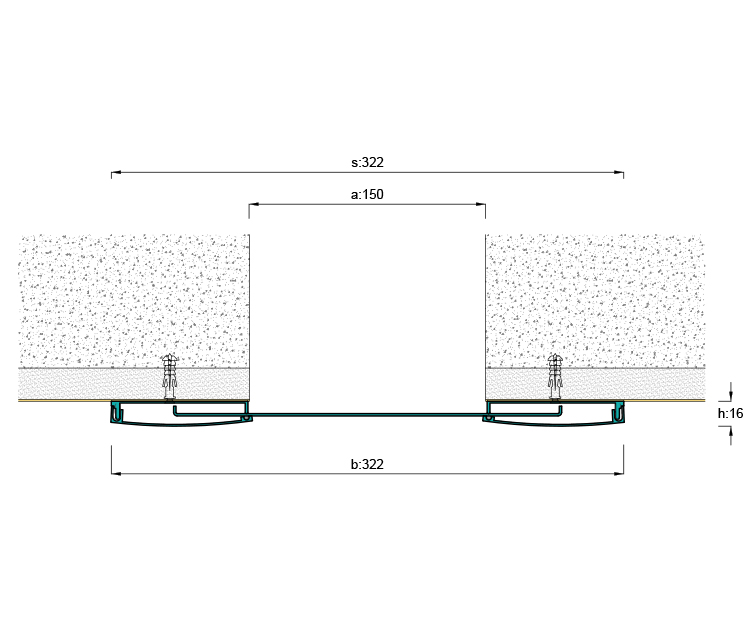

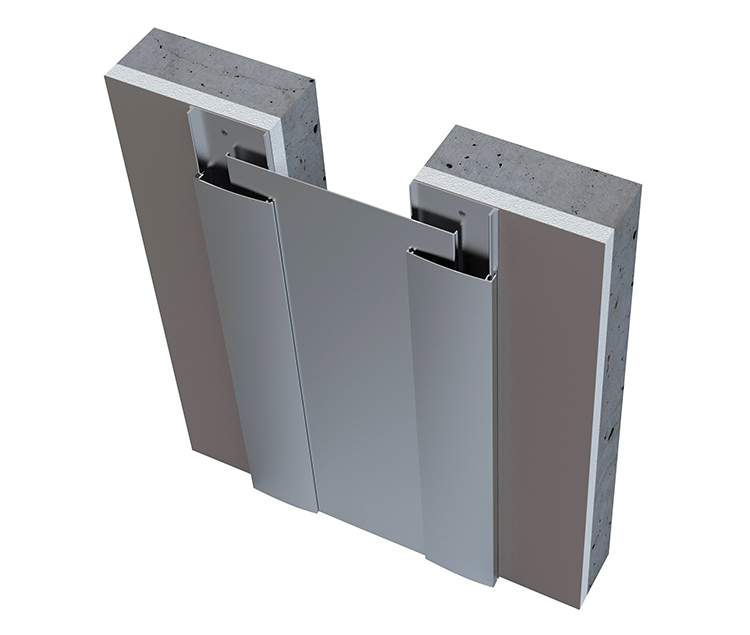

Seismic, Decorative wide and curvilinear side surfaced Wall & Ceiling Expansion Joint Profile wide and curvilinear for 15 cm gap . Steel Clips should be placed with interval of 50 cm.

Width:	150 mm
Depth:	16 mm
Movement Capacity:	+/- 75 mm
Profile Length:	3 mt

EXAMPLE APPLICATIONS
