Wall and Ceiling Profiles for Under Finishing

AR 215-080

Technical Specifications

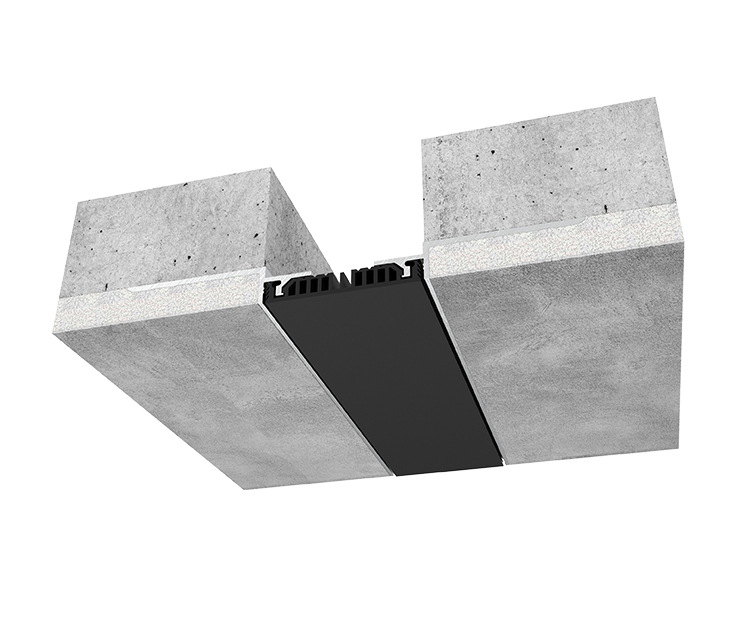

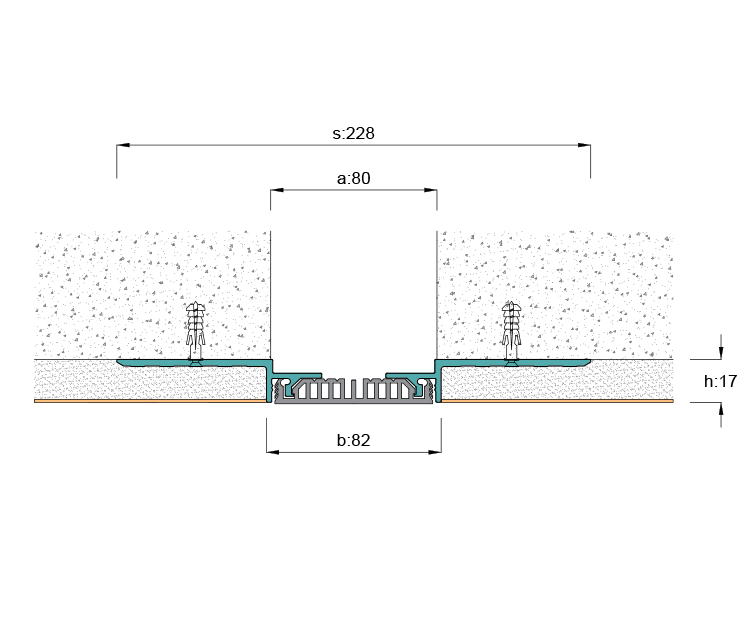

Flush Mounted Expansion Joint Wall & Ceiling Profile suitable for Plaster, Cermic and drywall.

Width:	80 mm
Depth:	17 mm \| Compatible with AR 109-080 series expansion joints.
Movement Capacity:	+/-10 mm
Profile Length:	3 lm

EXAMPLE APPLICATIONS
