Floor Profiles for Under Finishing

AR 309-080

Technical Specifications

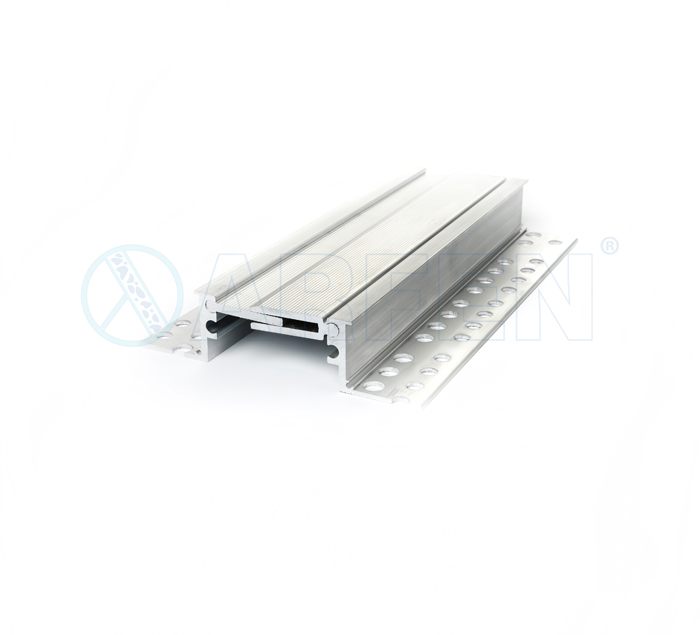

Flush Mounted Expansion Joint Floor Profile

Width:	80 mm

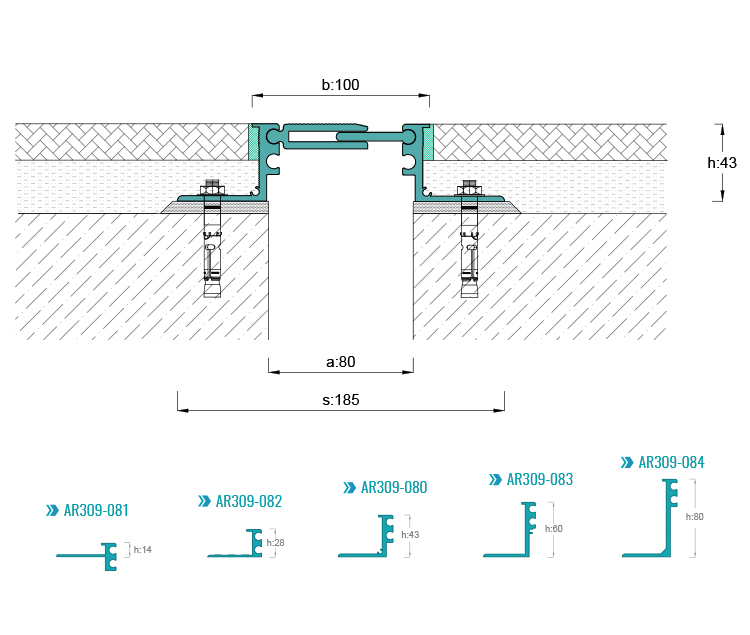

Height-Load Capacity:	14-28-43-60-80 mm\| Resistant to 3.5 tones vehicle load (According to h:43-60-80 mm)
Movement Capacity:	+/-12 mm
Profile Length:	3 lm

EXAMPLE APPLICATIONS
