Handrail Wall Protection System

WG 145

Back
Technical Specifications

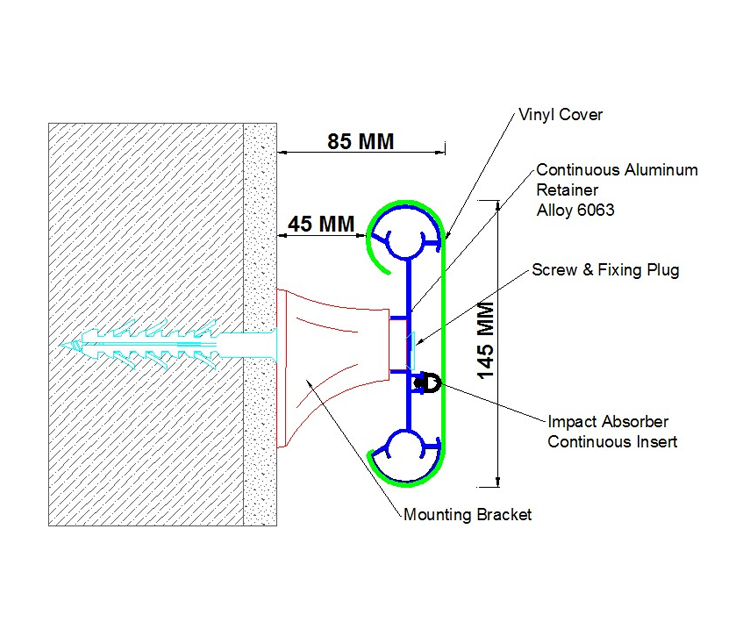

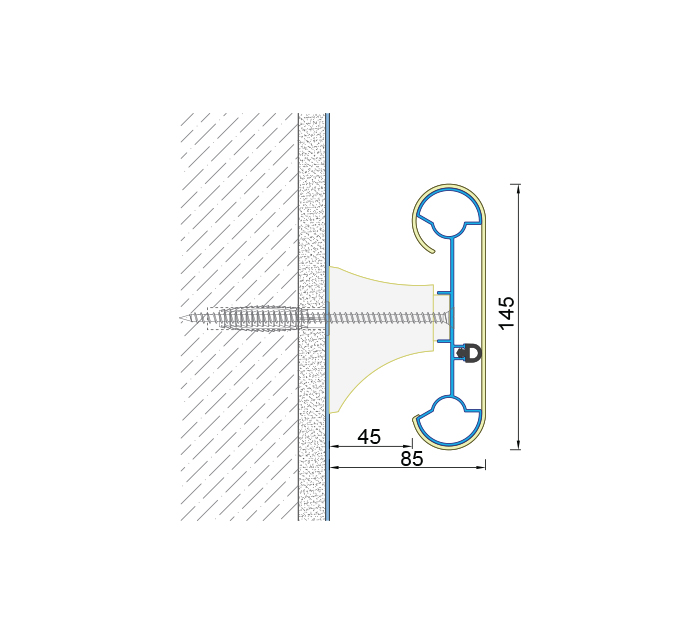

WG145 is a wall protection band which is 145 mm width, 85 mm in depth,and is mounted against the wall with a continous aluminium profile and has a hand rail. WG 145 is an elegant handrail which also protects interiors from impact damage and wear. This handrail system provides support, decorates and preserves building interior. Decorative vinyl cover are produced in 32 different colors.It is installed to the walls with different fixing elements with an interval of 60-75 cm. Profile length is 4 meters.
Accesories
WG 005 Mounting Bracket
WG 006 Right and Left End Cap
WG 007 - 1 Inside Corner
WG 007 - 2 Outside Corner
