Watertight Expansion Joint Profiles

AR 600-050

Technical Specifications

Expansion Joint profile Compatible with rubber based bituminous membrane which provides waterproofing and suitable for Waterproofing required areas such as terrace, parking lots. When thermal insulation applied on the water insultaion, profile system should be raised by heel concrete. It is recommended to use geotextile on the membrane for protection.

Width :	50 mm
Height-Load Capacity :	25-50-60-70-100 mm \| Resistant to 15 tones vehicle, 6 tones forklift load.(AR 600-050A which has 25 mm height resistant to 3.5 tones vehicle load.) t:2.5 mm stainless steel top caps, 28 cm width thermoplastic side wings, hot air welded corner details of connection points are available. UV Resistant.
Movement Capacity:	+/- 20 mm
Profile Length:	3 mt

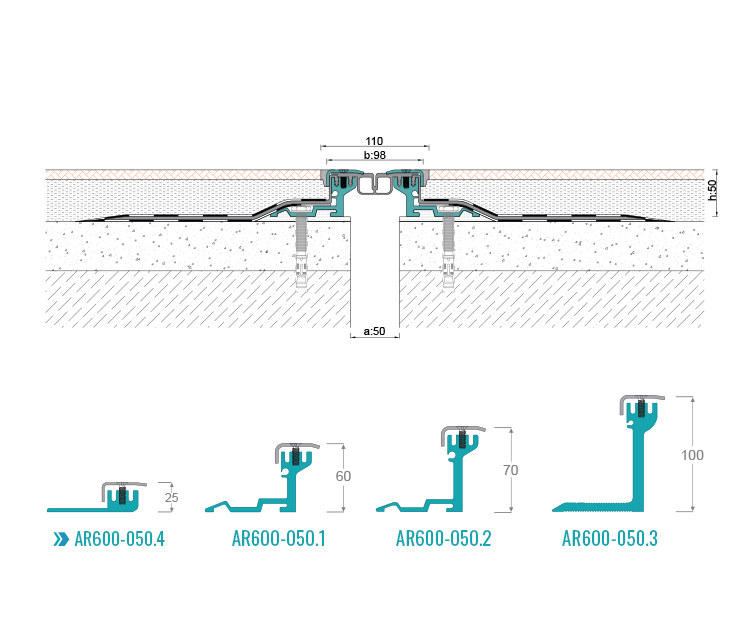

Alternative Leg Heights:	AR600-050A H:25 mm \| AR601-050 H:60 \| AR602-050 H:70 mm \| AR603-050 H:100 mm

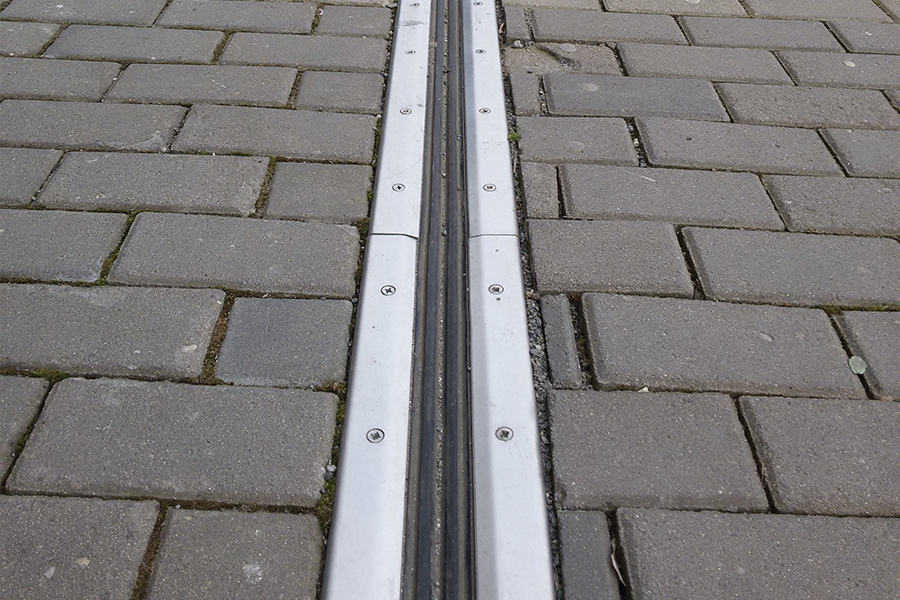

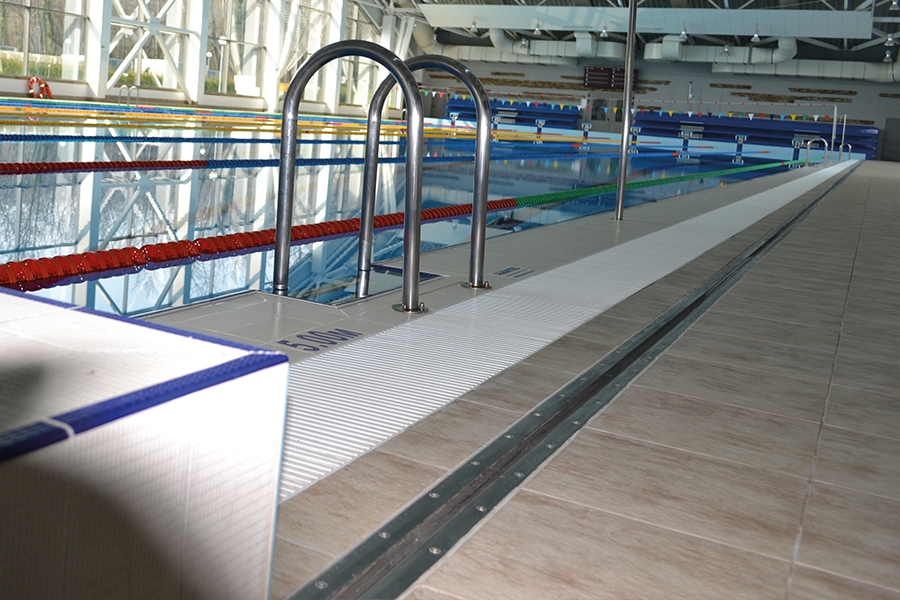

EXAMPLE APPLICATIONS
