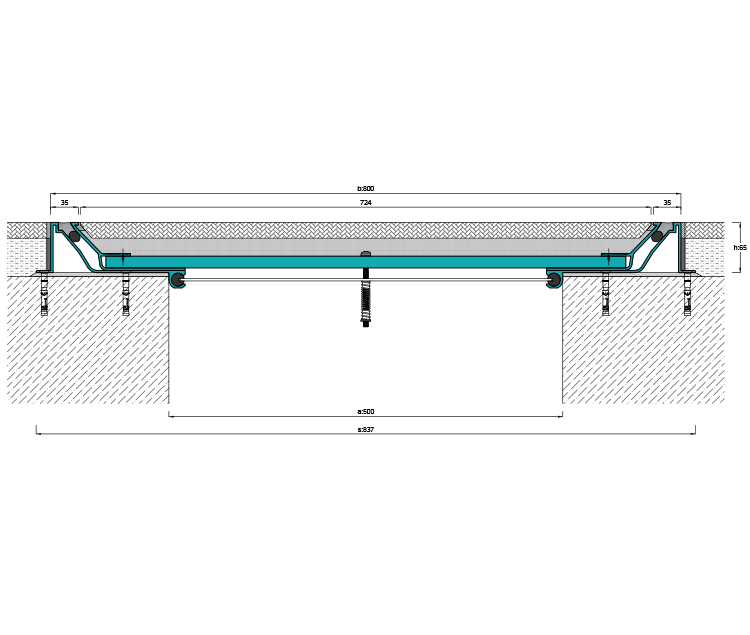

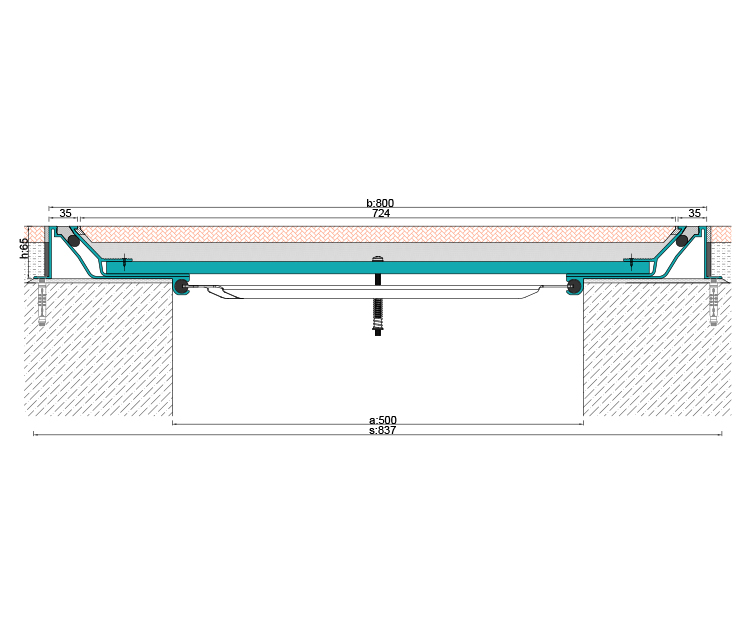

AR 806-500 (50 cm Gap)

Technical Specifications

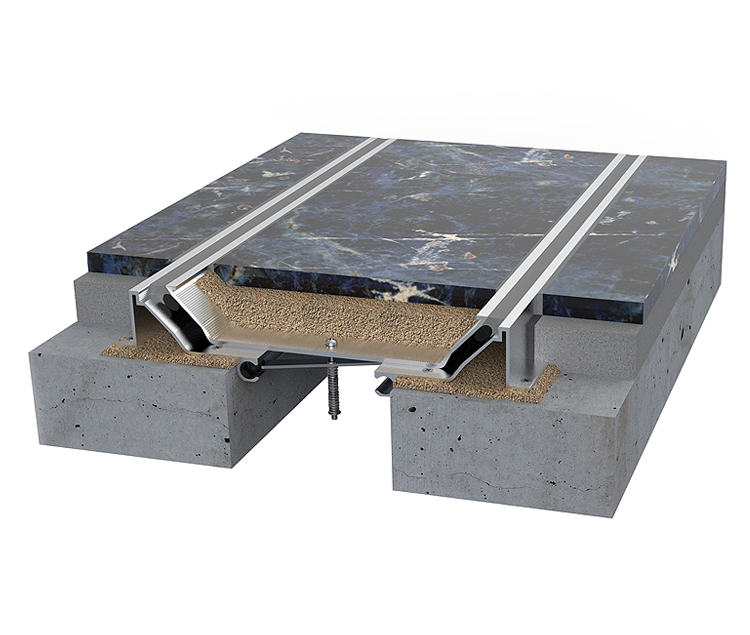

Sealant Applied, Flush Mounted Seismic Expansion Joint Floor Profile suitable for 50 cm gap with high movement capacity.

Width:	500 mm
Depth-Load Capacity:	65 mm \| Resistant to pedestrian and cleaning machine load
Movement Capacity:	+/-200 mm
Profile Length:	3 mt

EXAMPLE APPLICATIONS
