Wall and Ceiling Profiles for Over Finishing

AR 252-051

Back
Technical Specifications

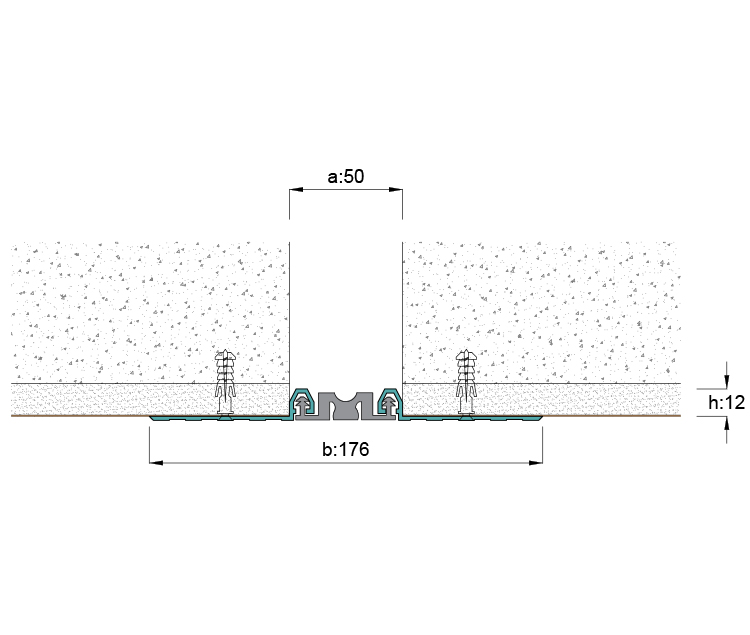

Anodized Surface Mounted Wall & Ceiling Expansion Joint Profile

Width: 50 mm
Height: 12 mm| Compatible with AR105, AR107, AR151 series
Movement Capacity: +/-10 mm
Profile Length: 3 lm
EXAMPLE APPLICATIONS
