Wall and Ceiling Profiles for Over Finishing

AR 255-050

Back
Technical Specifications

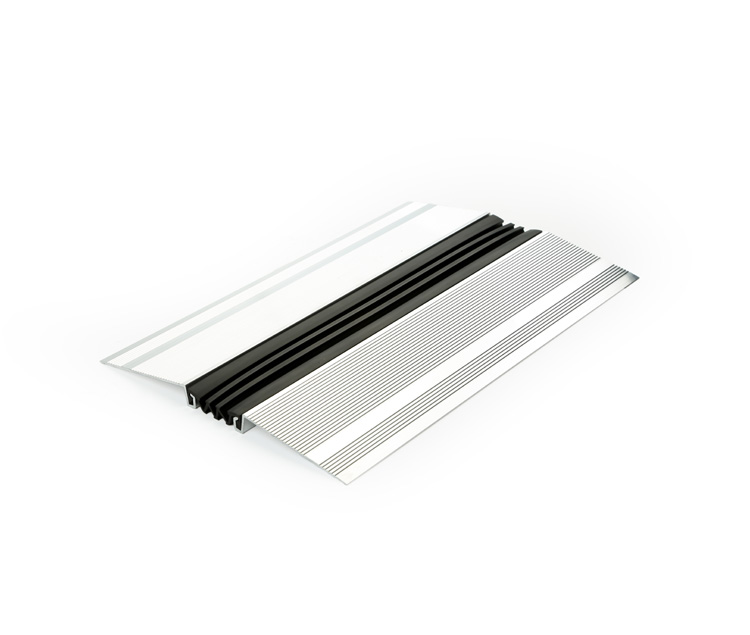

Not Anodized Surface Mounted Wall & Ceiling Expansion Joint Profile

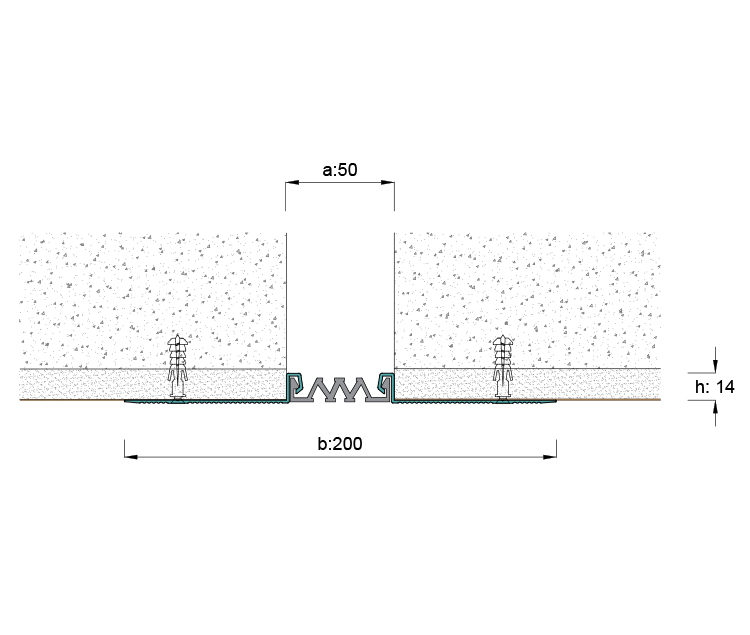

Width: 50 mm
Depth: 14 mm
Movement Capacity: +/-20 mm
Profile Length: 3 lm



Note: EPDM Rubber slide into the slot.

EXAMPLE APPLICATIONS
