Floor Profiles for Under Finishing

AR 823-202

Technical Specifications

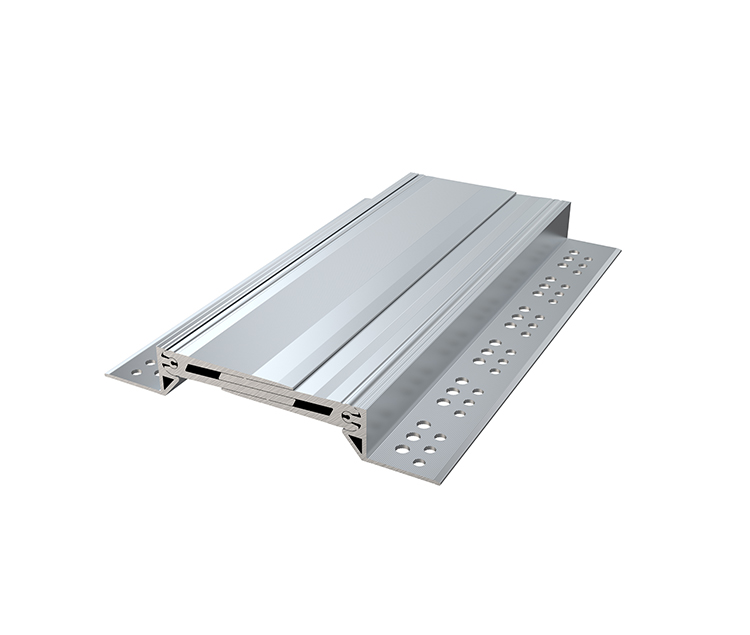

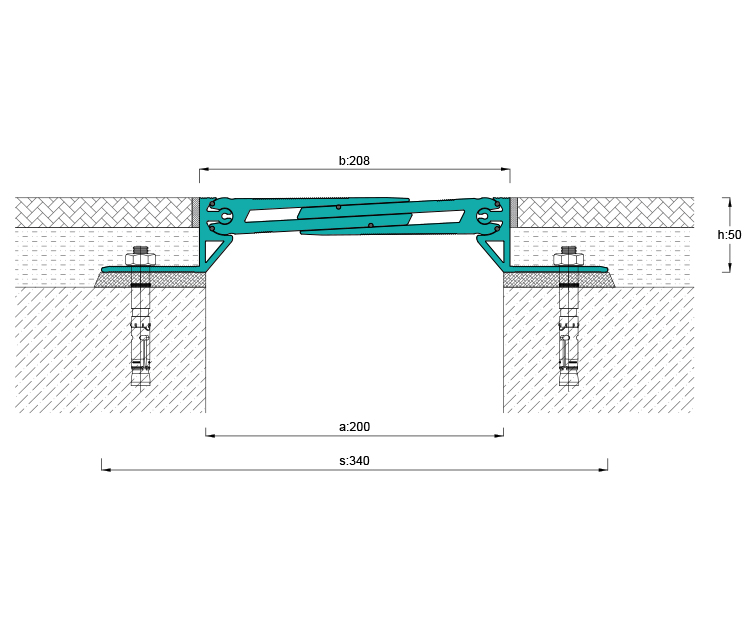

Flush Mounted Expansion Joint Floor Profile. Assembled Delivery

Width:	200 mm
Height-Load Capacity:	50 mm \| Resistant to the 9 tones vehicle load and 3,5 tones forklft load.
Movement Capacity:	+/-30 mm
Profile Length:	4 mt

EXAMPLE APPLICATIONS
