AR 804-200

Technical Specifications

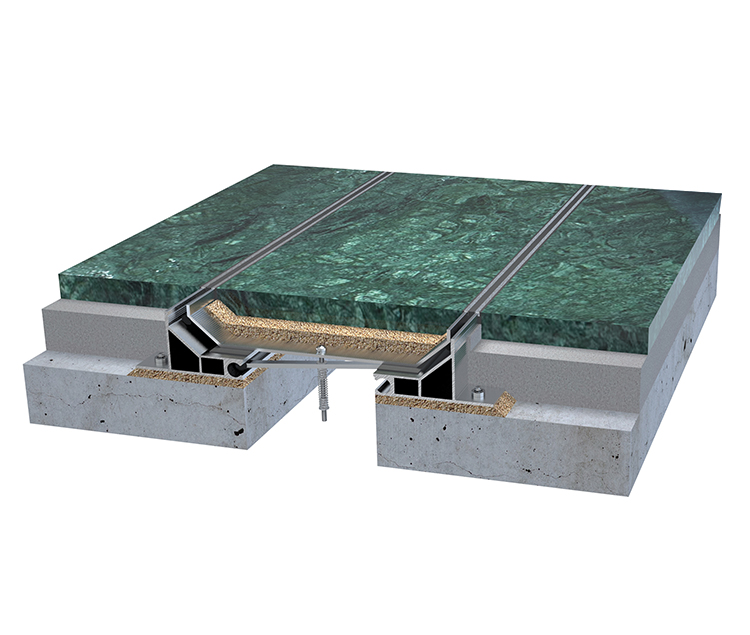

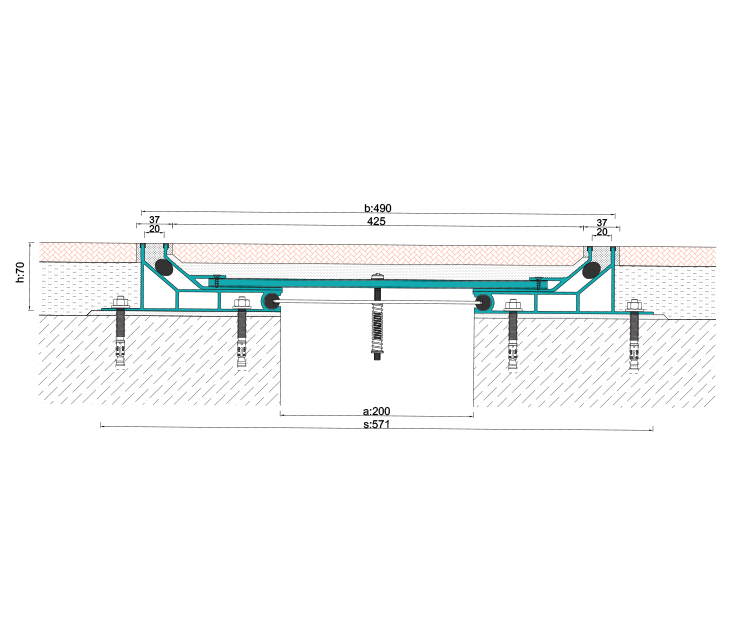

Decorative, Sealant Applied, Flush Mounted Seismic Expansion Joint Floor Profile for 20 cm gap with stainless steel top caps.

Width:	200 mm
Depth-Load Capacity:	70 mm \| Resistant to pedestrian and cleaning machine load
Movement Capacity:	+/-75mm
Profile Length:	3 mt

EXAMPLE APPLICATIONS
