20 cm Expansion Joint Profiles For Floor

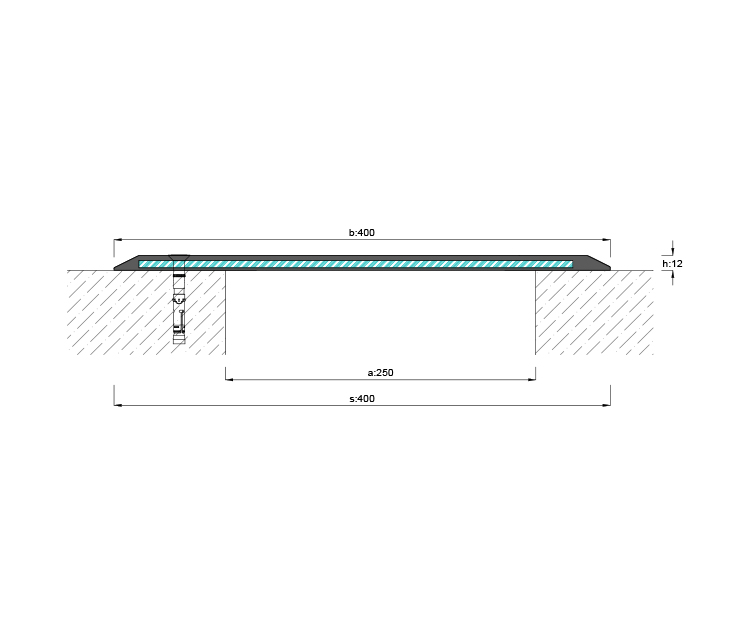

AR 951-250 (25 cm Gap)

Technical Specifications

ST37 grade steel and rubber composite Surface Mounted Floor Expansion Joint Profile suitable for Parking Lots.

Width:	250 mm
Height-Load Capacity:	12 mm \| Resistant to 3,5 tones vehicle load
Movement Capacity	+65 /- 250 mm
Profile Length:	2 mt

EXAMPLE APPLICATIONS
