AR 911-350 (35 cm Gap)

Back
Technical Specifications

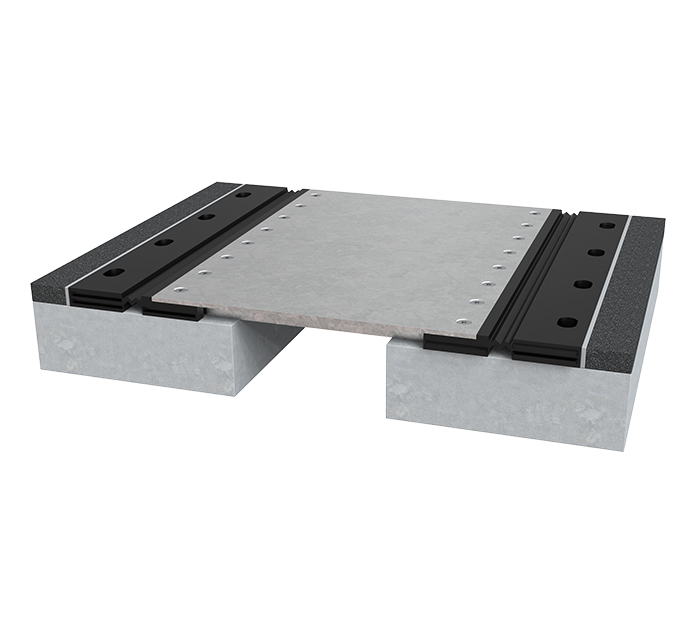

It is a composite, steel-and-rubber, subfloor expansion joint profile designed for use beneath floor coverings in logistics centers and industrial facilities. It is engineered to withstand heavy traffic loads from trucks, semi-trailers, forklifts, and other heavy-duty vehicles.

Width: 350 mm
Height-Load Capacity: 50 mm | Resistant to 6,5 tones vehicle load
Movement Capacity: +/- 50 mm
Profile Length: 1 mt
