AR 821-200

Technical Specifications

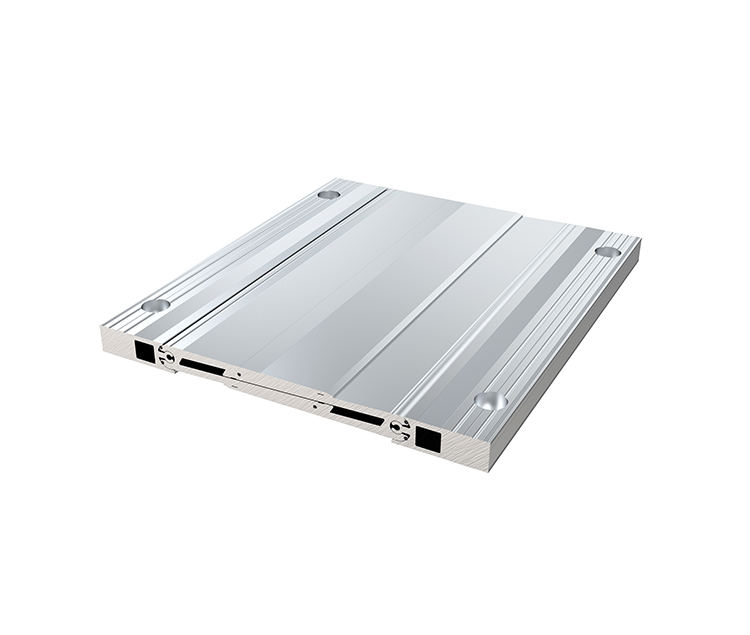

Flush Mounted Expansion Joint Floor Profile suitable for Industrial Floors, Factory, Warehouse and Shopping Malls such as heavy vehicles and forklift traffic is used in areas.

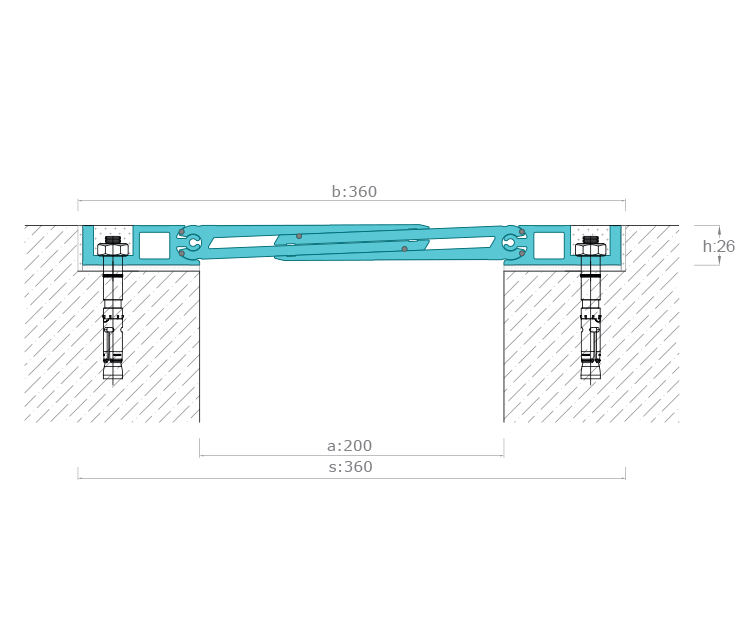

Width:	200 mm
Height-Load Capacity:	26 mm \| Resistant to 15 tones vehicle and 3,5 tones forklift load.
Movement Capacity:	+/-35 mm
Profile Length:	3 lm

EXAMPLE APPLICATIONS
