ARFEN ROPE

Technical Specifications

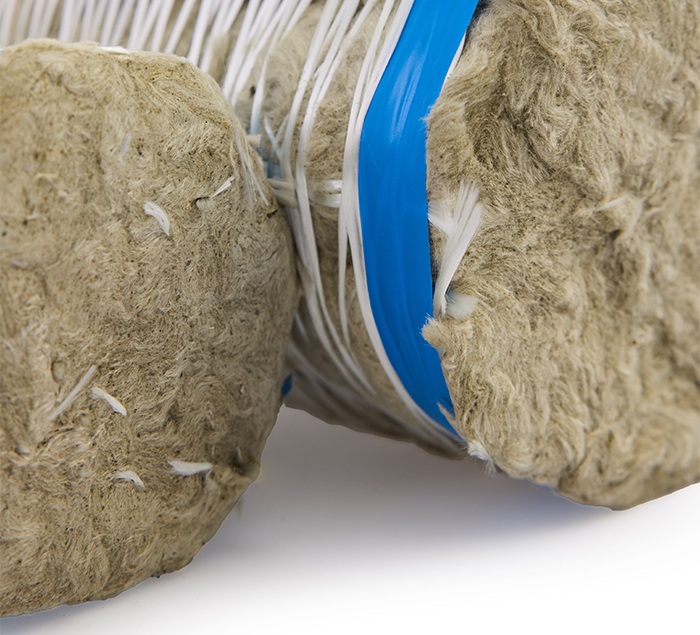

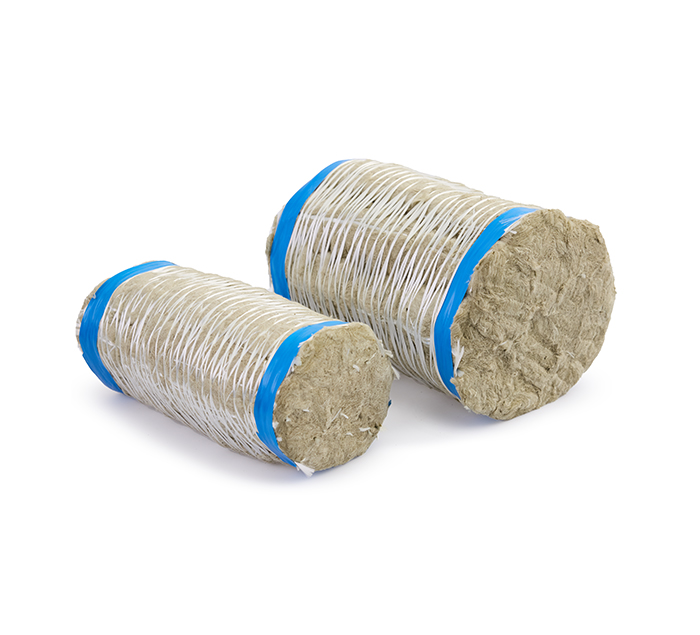

Arfen fire insulation rope can be easliy applied because of type used as Glass yarn weaving on rock wool. Should beplaced in the expansion joint gap by compression of at least 33% Arfen fire insulation rope diameter to be selected according to the application area,

Horizontal - Vertical Fire Resistance Time: EI240 (SIST EN 13501-2)

Fire Resistance Classification: A1

Product Sizes: 20 - 180 mm

Product Density: 240 +/-20 Kg / m3

Horizontal And Vertical Use Suitability: Yes ETA 17/0061

PRODUCT CODE	DESCRIPTION	UNIT
ARFENROPE20	20 mm Fire Rope/10 mm for dilation L (length): 30 mt	mt
ARFENROPE30	30 mm Fire Rope/16-20 mm for dilation L (length): 30 mt	mt
ARFENROPE40	40 mm Fire Rope/21-30 mm for dilation L(length): 30 mt	mt
ARFENROPE50	50 mm Fire Rope/31-40 mm for dilation L(length): 25 mt	mt
ARFENROPE60	60 mm Fire Rope/41-50 mm for dilation L(length): 25 mt	mt
ARFENROPE70	70 mm Fire Rope/51-60 mm for dilation L(length): 20 mt	mt
ARFENROPE80	80 mm Fire Rope/61-70 mm for dilation L(length): 20 mt	mt
ARFENROPE90	90 mm Fire Rope/71-80 mm for dilation L(length): 18 mt	mt
ARFENROPE100	100 mm Fire Rope/81-90 mm for dilation L(length): 10 mt	mt
ARFENROPE120	120 mm Fire Rope/91-100 mm for dilation L(length): 2 mt	mt
ARFENROPE150	150 mm Fire Rope/121-130 mm for dilation L(length): 2 mt	mt
ARFENROPE170	170 mm Fire Rope/141-150 mm for dilation L(length): 2 mt	mt
ARFENROPE180	180 mm Fire Rope/150 mm for dilation L(length): 2 mt	mt
