FS300

Back
Technical Specifications

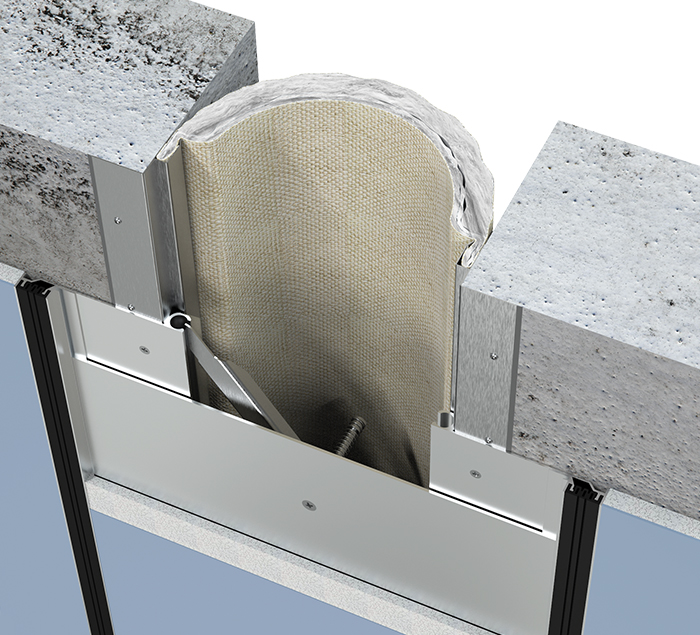

Arfen Fire Blanket is designed as a system produced to prevent the flame, smoke and high heat transfer that will occur in the expansion joint gaps in case of fire in the building for a specified period of time. Arfen Yangın Battaniyesi, özel yanmaz kumaşı, fiberglas malzemeden oluşan 8 katmanlı iç yapısı ile düşük ağırlıklı, yüksek performanslı ve kolay uygulanabilir bir sistemdir. The system is approved and certified by fire resistance performance test centers in accordance with international standards.

Expansion Joint Width: 300 mm

Application Direction: Vertical

Fire Resistance Class: A1

Fire Resistance Class: E120 (EN1366-4:2006+A1:2010)

Product Code   Expansion Joint Width     Min. & Max. Expansion Gap   Fire Resistance Class
FS300 300 mm  150 mm - 450 mm   E120 - EI20 - V - M50 - F - W300
