Floor Profiles for Under Finishing

AR 309-100

Technical Specifications

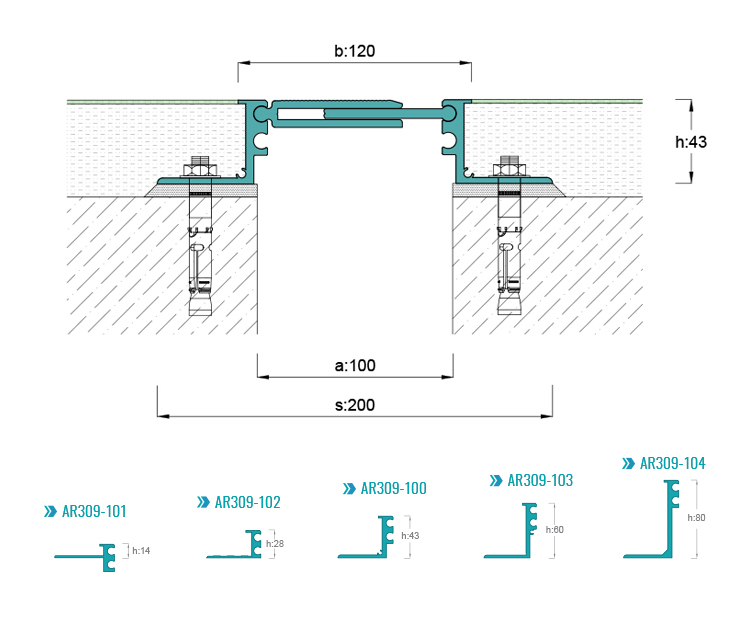

Flush Mounted Expansion Joint Floor Profile. Assembled Delivery.

Width:	100 mm
Height-Load Capacity:	14-28-43-60-80 mm \| Resistant to 1,5 tones vehicle load. This load resistant is acceptable for 43-60-80 mm height leg profiles
Movement Capacity:	+/-15 mm
Profile Length:	3 lm

EXAMPLE APPLICATIONS
