Floor Profiles for Under Finishing
AR 901-100
Technical Specifications

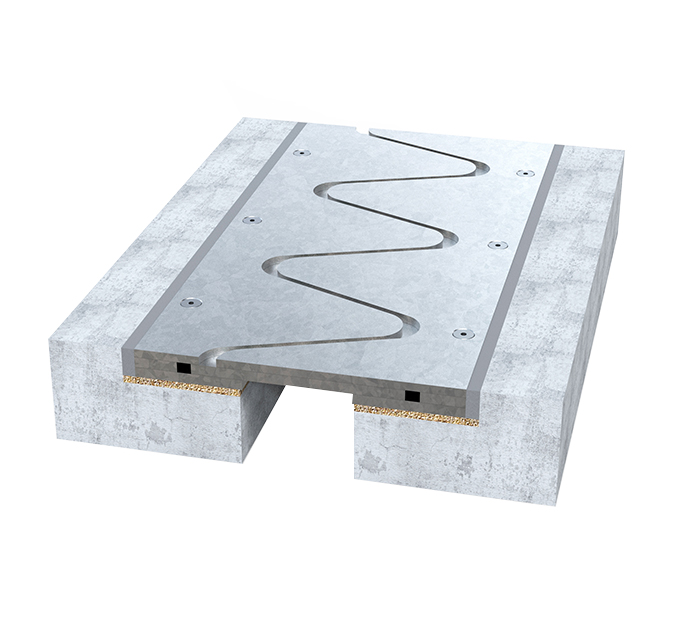

Flush Mounted Expansion Joint profile with steel reinforcement at below, galvanized steel top surface and resistant to intense forklift load. Suitable for Industrial Structures

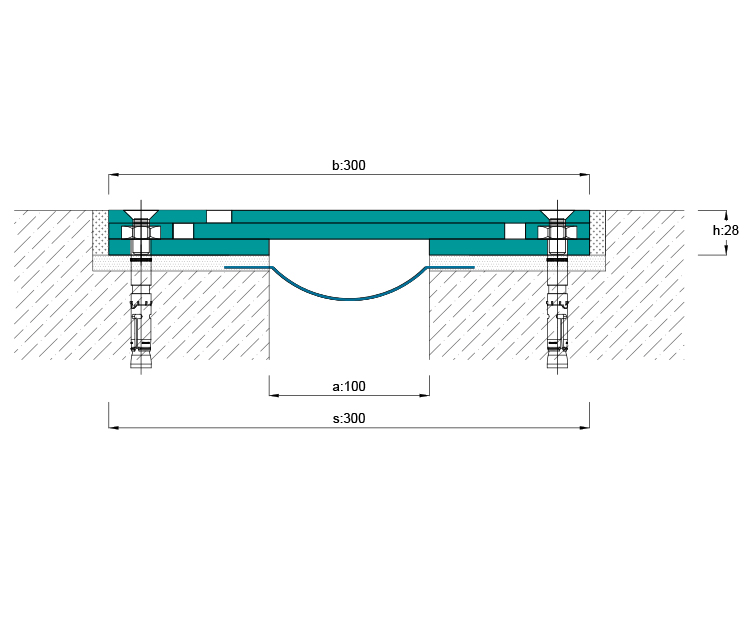

| Width: | 100 mm |
| Height-Load Capacity: | 28 mm | Resistant to 60.0 tones vehicle load and 9 tones forklift load. |
| Movement Capacity: | +/-10 mm |
| Profile Length: | 2 mt |

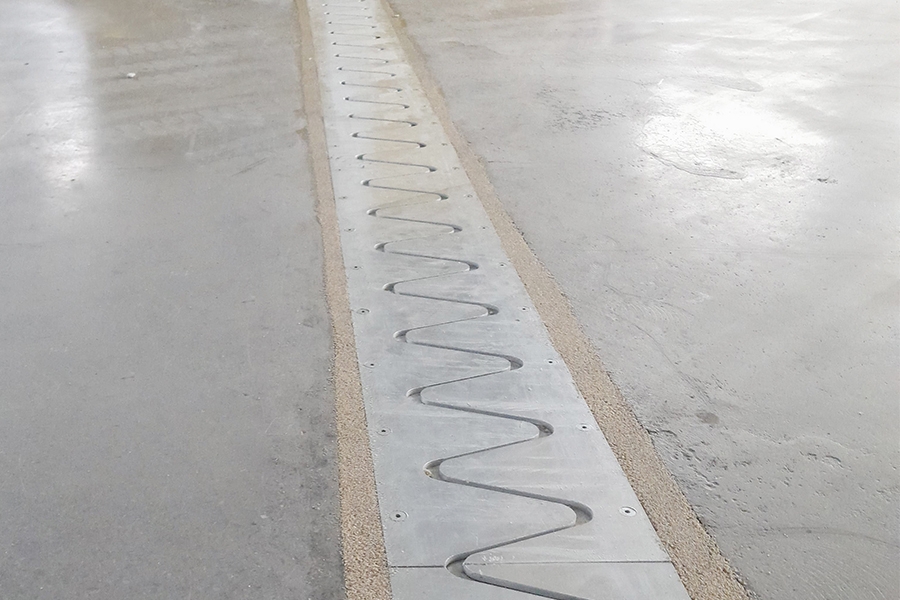

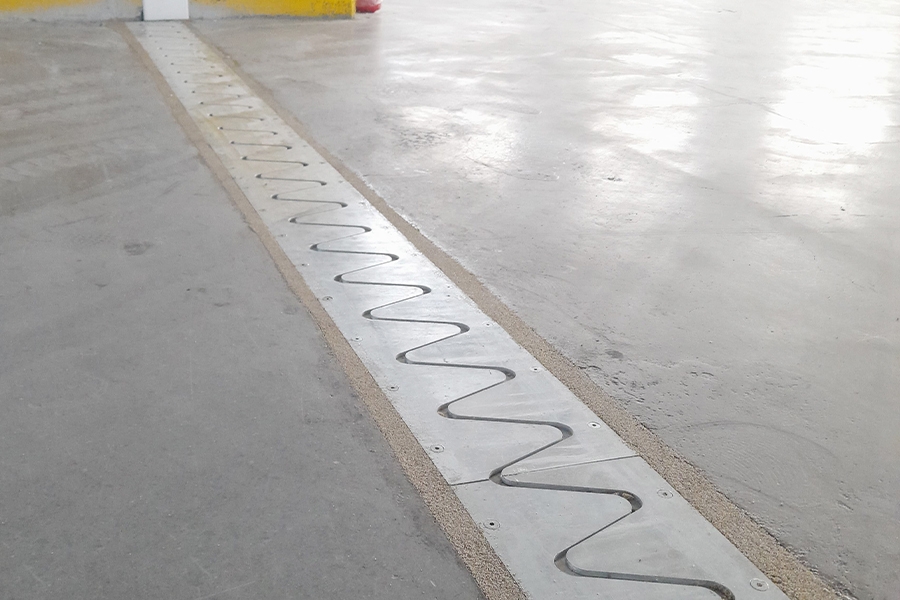

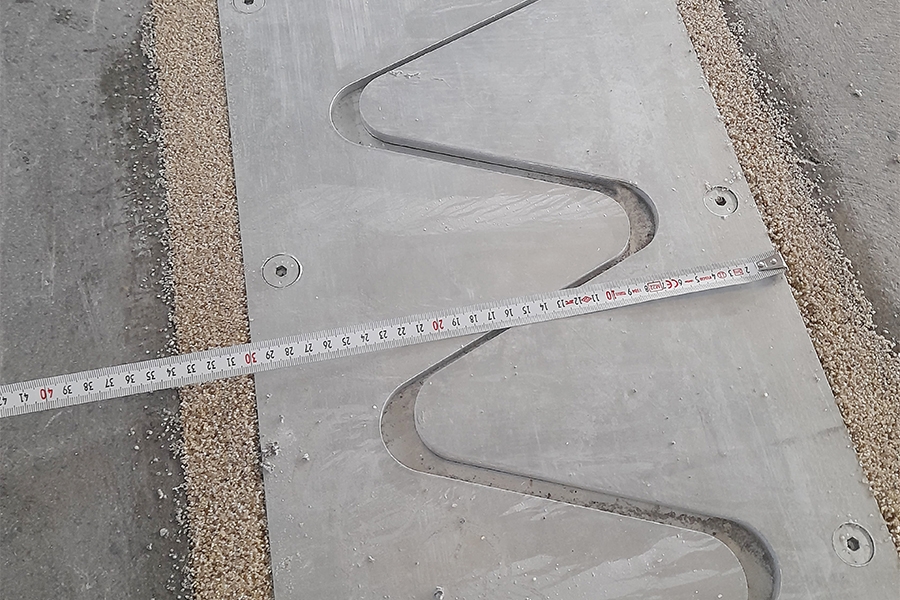

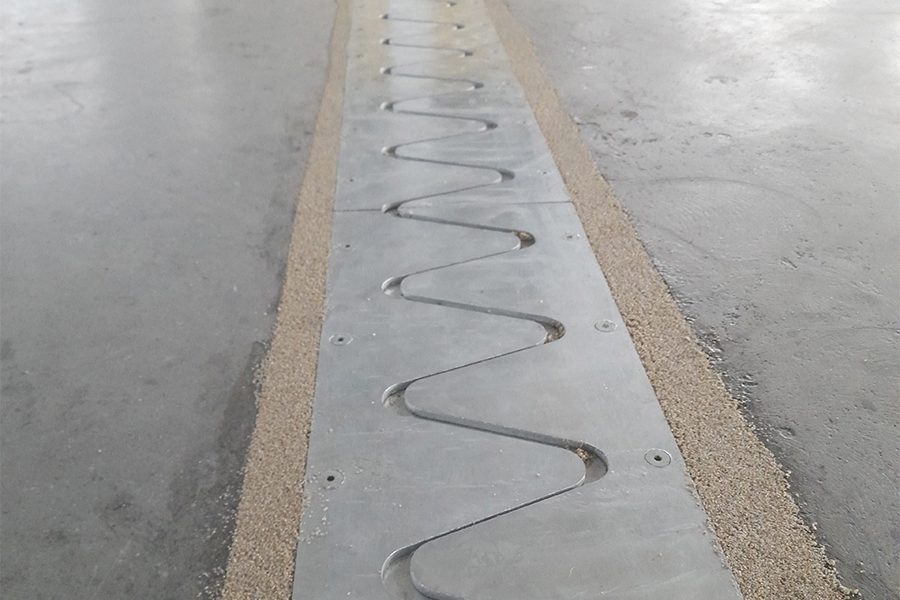

EXAMPLE APPLICATIONS
