AR 823-100

Technical Specifications

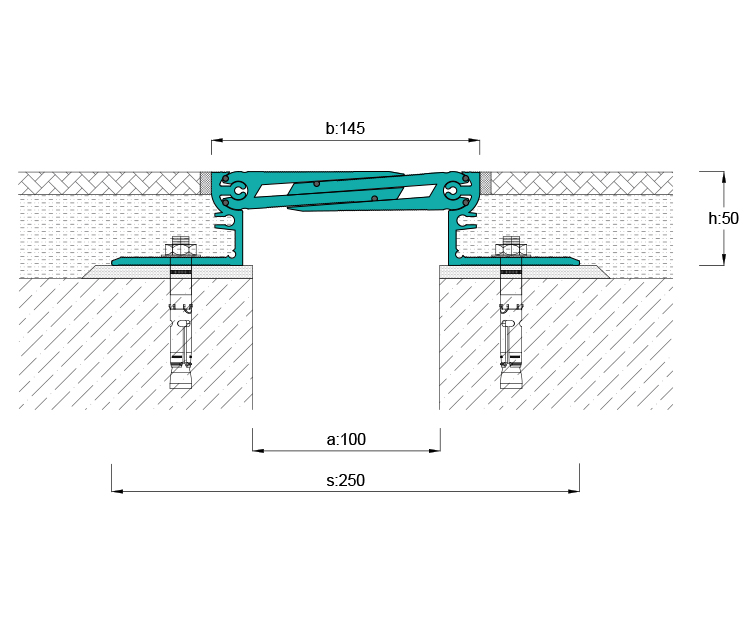

Flush Mounted Expansion Joint Floor Profile suitable for Industrial Floors, Factory, Warehouse and Shopping Malls such as heavy vehicles and forklift traffic is used in areas.

Width:	100 mm
Height-Load Capacity:	25-40-50-60-70 mm \| Resistant to 30 tones vehicle and 6,5 tones forklift load.
Movement Capacity:	+/-20 mm
Profile Length:	4 lm
Alternative Leg Heights	AR820-100 H:25mm \| AR822-100 H:40 \| AR824-100 H:60mm \| AR825-100 H:70mm

EXAMPLE APPLICATIONS
