AR 851-101

Technical Specifications

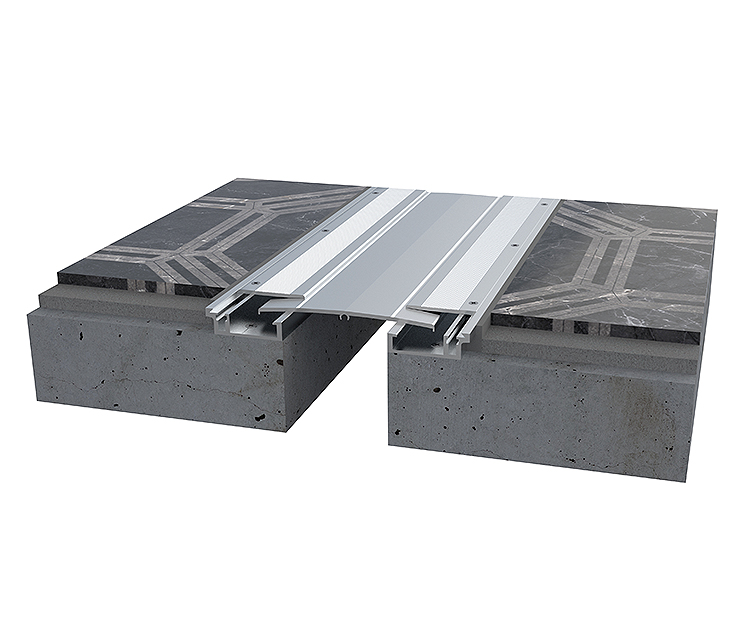

Flush Mounted Seismic Expansion Joint Floor Profile resistant to light vehicle load and has high movement capacity with aluminium surface.

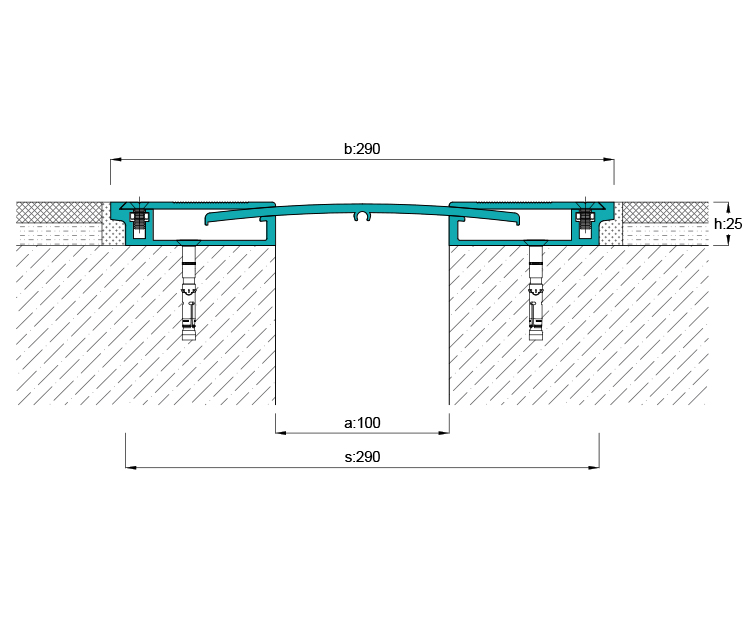

Width:	100 mm
Height-Load Capacity:	25 mm \| Resistant to 2.5 tones vehicle load
Movement Capacity:	+/-60 mm
Profile Length:	3 mt

EXAMPLE APPLICATIONS
