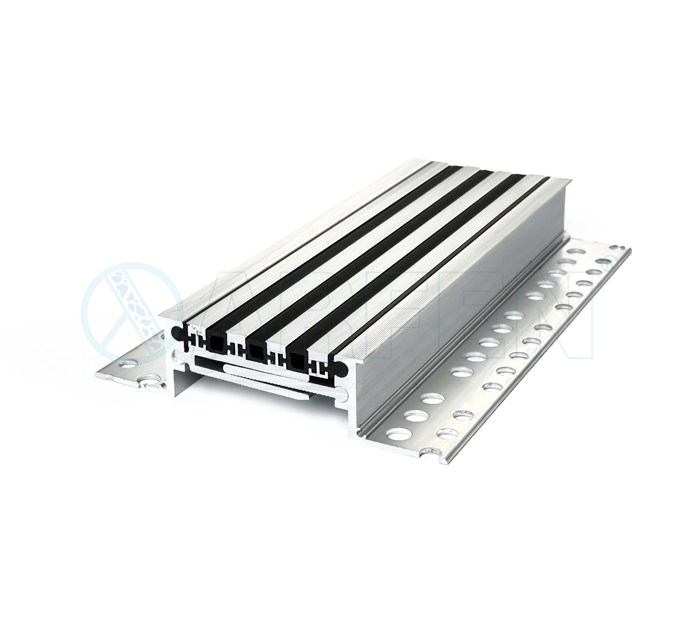

Floor Profiles for Under Finishing
AR 303-100
Technical Specifications
Decorative, easy applicable and also resistant to heavy load, Flush Mounted Expansion Joint Floor Profile suitable for Industrial Structures, Hospitals, Parking lots. Due to its flat surface and decorative appearance, it is widely used with granite, marble and PVC floor coverings. Assembled Delivery.

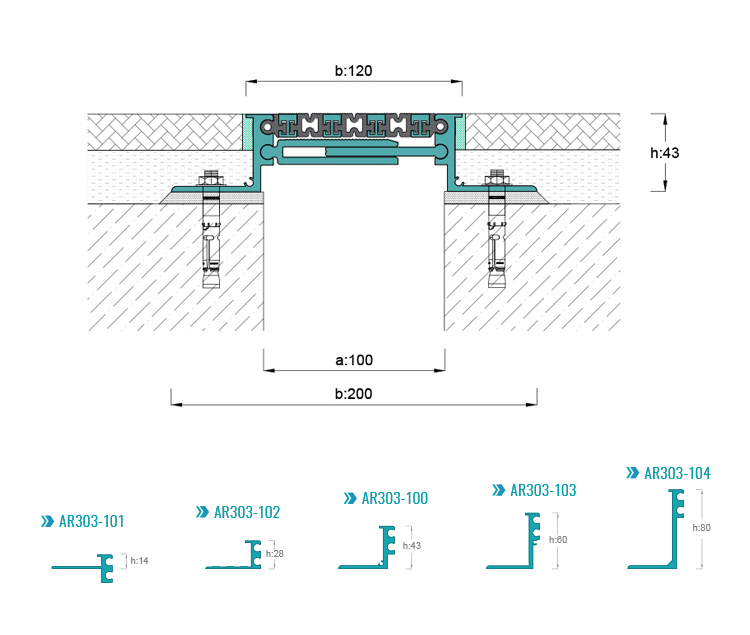

| Width: | 100 mm |
| Height-Load Capacity: | 14-28-43-60-80 mm | Resistant 3 tones vehicle load and 1,5 tones pallet truck load. (According to h:43-60-80 mm) |
| Movement Capacity: | +/-15 mm |
| Profile Length: | 3 lm |
EXAMPLE APPLICATIONS
